# Integration with Jira

{% embed url="<https://youtu.be/kQE--qdze8w>" %}

In order to create new integration with your organization’s Jira account, please consider the following guidelines.

## Jira Cloud

### Step 1: Select Jira from Integration Tab

Once you are done with team creation, open the **Integration Tab** and then click the **Jira** option under Team Tools.

<figure><img src="https://lh5.googleusercontent.com/HaDJk3QEphcQzuaijYa_1JqafcZM7wKXieRw5JIph0T6aupOhwTJyBa0xk5KnMTfX-NVuBq55e4jcC7uwjH-7Nf89LxJyQa6B4pbMItB8AIPnZex1idnzIEe20eRFBrpxdCC9XjaLxw5OK5Dh0QvaZGwKE0it-ztfo6PMnMKHPwxSmClj9ZWF5N1Qw" alt=""><figcaption></figcaption></figure>

### Step 2: Create New Integration with Jira

To add your existing Jira account with the ClouldDefense Team Tools Jira, you need to Click the **NEW INTEGRATION** button as marked in the following picture and input the required information of your team Jira account to link with the team.

<figure><img src="https://lh3.googleusercontent.com/QK7YCQLVfiG47sPEmWdyqeO_B4jNNvv10lmhQVN-reKoJRtKXS8aHByRAGvFLKRbkVdUo5jIt0a2m1zi_DE5DNw3ExW8_spzZ7P44gar8bbNH5s3uvN4d80q-M7Tm8SibUCz9FV4TYIF-auppiDstmkV1yceE6leRjJXvwFqhMcOA0_KOb4fUkbT6Q" alt=""><figcaption></figcaption></figure>

### Step 3: Input necessary information from your existing Jira account

Please input all the necessary information related to your team (optional), project, and credentials for Jira integration. Please provide all the valid information to successfully integrate Jira into the Clouddefense tool. We have given sample input for your better understanding.

<figure><img src="https://lh3.googleusercontent.com/n0XKC5d7MhCRq3n4tKXDjSxPxMSr2Q2VuINZgHFLm3kUhAhM3WBvLTfEnzj7Hynqpn-bL2LRxgYAg8UkyK0ENuLR6PzDCo4Hexwxwwt1iKgQos74Wism7vt_t31lgweMQrjrfDXNImbw2XwRpvCRvu5Qb2IzHq5Xi03NC1BwfQuv2nW-6Ml2gr41NQ" alt=""><figcaption></figcaption></figure>

<figure><img src="https://lh6.googleusercontent.com/ITPwAMoB39OC3j_CIipOZujLUtFiIaCSfWtK8kwINf1sZTuyrLjj1j0euHN1EOkiykWnW2WC0XOcFPbbK6umU5KIPqKSN7GNPbawTiozqsswBGji0xP5ySxAUEvPbuMarAzBHNd5BniI3nliRwskO3qUaNWm8EagIQW2Chfkl6wl1BvEt9pbQ1zATQ" alt=""><figcaption></figcaption></figure>

<figure><img src="https://lh4.googleusercontent.com/eySttXU35eAZtF7Qe11zP1my4tzudtRZcrc8xB5apkzUgAODjkcQUUwjceEEXyKvpDasj3UusTcuh5y03QPqpXpfg9OXUjUDOKHbva5k1RIv_zMzQ1FVf9ALgGcfqoXg-EJpIGVpRch2ZbDsEkY20gYz2tW-AJqoZ_60gKKPxy-nzBa82hI1Svu89A" alt=""><figcaption></figcaption></figure>

### Step 4: Integrate Jira Account

Once you are done inputting all the valid information, then click on **INTEGRATE** button.&#x20;

<figure><img src="https://lh4.googleusercontent.com/TTmG28l1BrpoqJ9YHgZNdVxu3WrY4njXwBH5Z_AF7FSc5p-aVBhC_y9BQw3GvEgbMPDFYHOJeFkSlGggzrXps53klYVBa2kS2wAC2uOdx_-zPs1fRpMgKSKK9ubuwQcqMXkVW6CiRHAbi2Jq4uvqd5LHgvb8QHJyhXj_6_j2lNEDkfwY2D2IB7iTUA" alt=""><figcaption></figcaption></figure>

The system will successfully integrate your Jira account in a few seconds. The marked interface will be displayed.

<figure><img src="https://lh5.googleusercontent.com/-KYetJWiwZAUIPDmWc4l7L-Ttslym6ynIzVqNsf3RR_ORIwu2w11Kmdf41PXrJflm0bSmzAL5m-sXcEm9A9WpzEPqRHMIYtDpq2MVzO44cUYYjvmMI32S7uA0Bn9fW1MS_b3e6rnCrqrqDEnw0LNaPhi3GonpvmkZ6IAHboDVuk_ifodtaY649AMiQ" alt=""><figcaption></figcaption></figure>

## JIRA Server

### Prerequisites&#x20;

* Users must have an existing Atlassian account, which requires: JIRA Software Credentials

### Step 1: in the integration page, select Jira

<figure><img src="https://lh5.googleusercontent.com/3h6gCUfML9k1K5iFpS8xK_e9zW2a-3rO_f3xrlXVbscrn4_SZGIZIGOgpXnjkdkJChVzoKYmUKo5-cfBBrNcPPn9pZ9FRhna1J5GsqxEr8JfiCoXQJec1j7b0qb80TViofFyqrZ9Lafa1HXqgptnd9usJA0hoPziber2FfkT-axJXCMQM0M84gb73g" alt=""><figcaption></figcaption></figure>

### **Step 2: Check the "Jira Server" checkbox**

Now you need to go through all of the previous steps mentioned above until you see the "Jira Server" checkbox:

<figure><img src="https://lh6.googleusercontent.com/nQlkVuBMXZxQrGQTmLKO5SSfaSA3jQZ8Jk2e0UIZn0AvyM8OTFJ-VUKAyXvr77Rfyw7UUyOrOeyzHuLfWs1RNRwv_ws0b6VncUoz5kuyIHqEXk8u7S97EgwaXjs0or3TG68_Mg832IneAYv0dzg-DQSYBp4yEiRQKosbs8QCv_DaAnrlLk_-HtTPgQ" alt=""><figcaption></figcaption></figure>

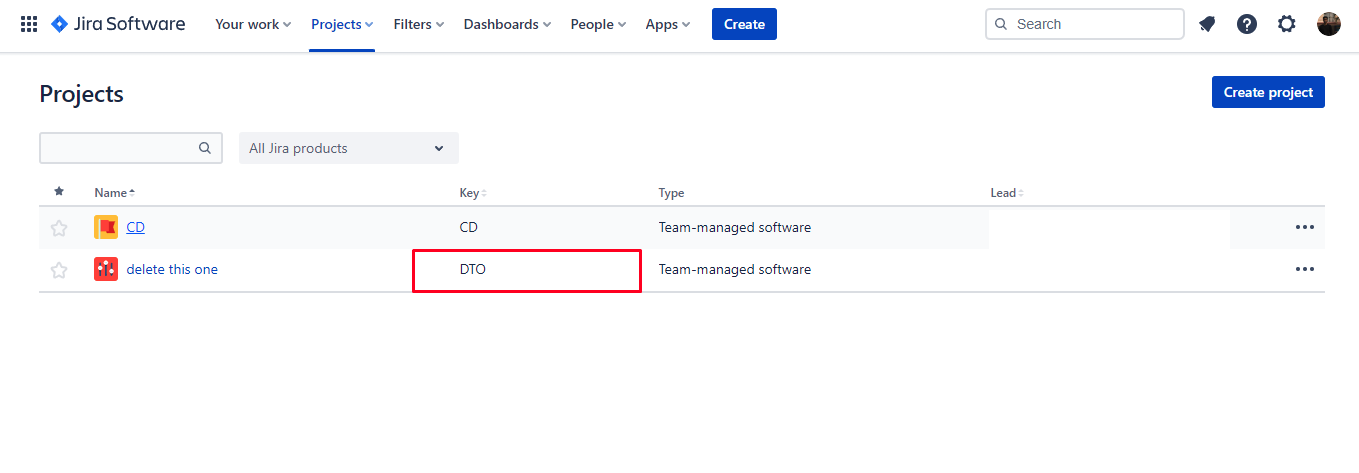

### Step 3: copy the project key from here

Please copy the project key. Here is an example for this:

<figure><img src="https://4095801085-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FtErerJyslHxJo5moBxJo%2Fuploads%2FJJdebyjwl5MXeCRpcllJ%2FScreenshot%202022-10-07%20at%209.53.40%20PM.png?alt=media&#x26;token=6ed85fc1-3f14-478a-9b0e-320d407f3579" alt=""><figcaption></figcaption></figure>

<figure><img src="https://lh4.googleusercontent.com/2_fmExF_oBuT9Dk0j6v5uxGdhpSlddjds57YvjhNR7tjKrWFJ4XAuQrGOJ5dAEs7d6bjSPppJE1dgDB9kg6YHYMWk4LF2-vUnY61Pj56qv-wfGuMovikO8iEpGAnJXpNf0EqZFhTKO7yAtplmpf9ZEsnBsEHvk-RCw04hsCisbupayvl9YdoKFl5kQ" alt=""><figcaption></figcaption></figure>

### Step 4: Input the “Domain name/organization / Jira server domain”

Domain name / Organization / Jira server domain is found in the url of the project. For example:

<figure><img src="https://4095801085-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FtErerJyslHxJo5moBxJo%2Fuploads%2FyQRwFIEqBT6JlNjuLqwJ%2FScreenshot%202022-10-07%20at%209.41.51%20PM.png?alt=media&#x26;token=a7aca716-b1ab-47ca-98e6-b0747bb46cbb" alt=""><figcaption></figcaption></figure>

### Step 5: Type the Jira Email and Authorization key

<figure><img src="https://lh5.googleusercontent.com/qslCIuvhRrhP67qA6O-dXLOJcId88KjkrhVu8eRbOypl7671b2Pm5CJCCpCzk2MwjfyPoNCVuLkV8FjP-Q7EplGW6LxugFStNf2mR-3Z-TW6PRfyJYvXCYcB5gOqTCh8OIKvUyKLEBaKaKOyRsPLEzDIkUfAz-jeZ4O1w7eXL8QGWaMKOIyvazic8Q" alt=""><figcaption></figcaption></figure>

#### Create Jira Authorization key and generate a Jira api token.&#x20;

*<mark style="color:green;">Note</mark>: The Jira API token will be used as the Jira Authorization key.*

*G*o to <https://id.atlassian.com/manage-profile/security/api-tokens> and click the “Create API token“ button for generating a new the API token.

<figure><img src="https://lh6.googleusercontent.com/8pMbUJmGtcNfQtNjHPa4iWMzKK6FDuukCJvuk2zgJI_VzeFc22qSKV74gRkVMbs0XzneRwK6afQ_Z1BU8rvEFu9qjHMmxsKVO4aueH7i-yI7uf-a6BL50Y1ifxmuIgQo5p99LK_yEEACd2vl3IXhoyjOlJ-jaQcyvekFP9HKSiOeFrFb3DgXVUXmVw" alt=""><figcaption></figcaption></figure>

<figure><img src="https://lh3.googleusercontent.com/FfRhhZ7cUTcPF-kO8pTWhu_qaG6SFzY6FoAnVhcSFDaDj9tQ1RKZbjqucexgDdAkGR6JG5IP-cU_Z8w80bYhV2DG4no4nOnSLCUxBRroXPvMguPk0izgnZyHl56EGAVEqMLoj03aPAvL8OXh30E-n88NofT6RyRoBG4n6rXQq2RabaxbpjIbiI7zgQ" alt=""><figcaption></figcaption></figure>

<figure><img src="https://lh5.googleusercontent.com/0OIzhKGzBkIwM1FEYrn2ywR2QBNSB6zXnIBzKKp6U168cc9q3Pc55y3RKoVFqJgKdM28nkD1KtBeMndOlndESLtNuavfUPEki3k4OXOKwoIAB9cpxUNoz557N9Dc6XpWJpG59vAVOYaMe0fjxuJhz4Ws1DzekVWjlbiTed7bokTFabN8uE-TMs57yg" alt=""><figcaption></figcaption></figure>

Copy the API token and paste it in the Jira authorization key field.

<figure><img src="https://4095801085-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FtErerJyslHxJo5moBxJo%2Fuploads%2F4H4BqSpYjZn70OIBKcq7%2FScreenshot%202022-10-07%20at%209.49.23%20PM.png?alt=media&#x26;token=719048cc-0d26-4d3f-9ba3-e19b620b221f" alt=""><figcaption></figcaption></figure>

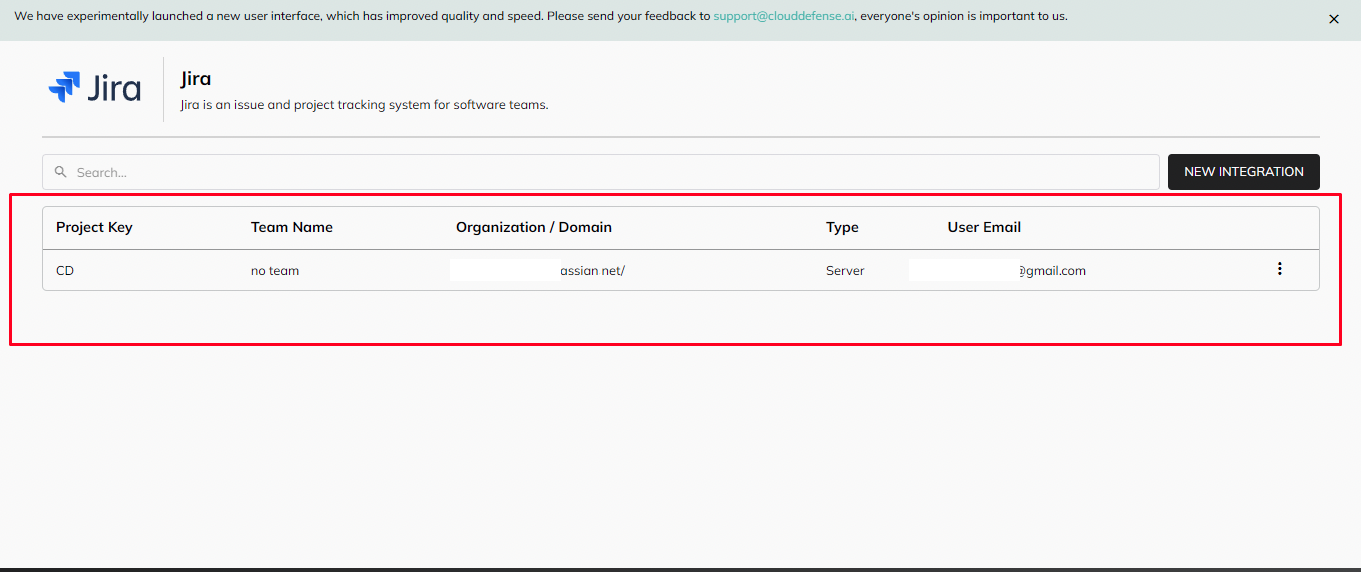

### **Step 6: Integrate Jira Server**

<figure><img src="https://4095801085-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FtErerJyslHxJo5moBxJo%2Fuploads%2Fx82oh1lbYg6Mu5LlLBwm%2FScreenshot%202022-10-07%20at%209.51.55%20PM.png?alt=media&#x26;token=47ce24d0-189f-4973-85e4-0aad42d4a9a0" alt=""><figcaption></figcaption></figure>
